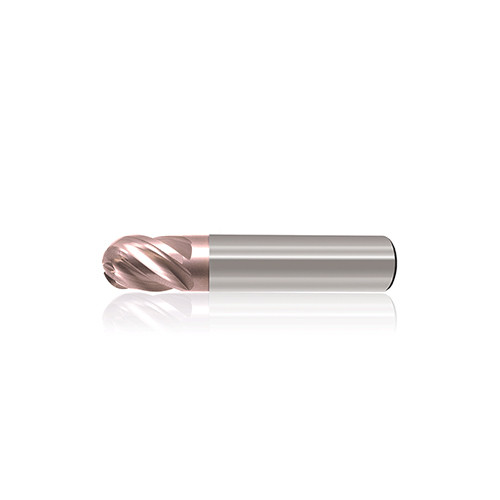

5 Flute Ballnose for Finishing, variable Pitch, Center cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs.

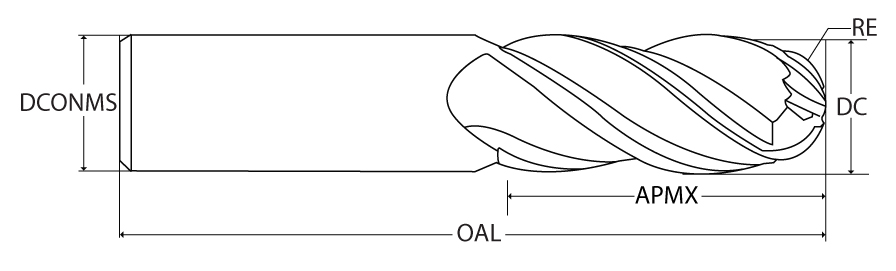

| Cutting Diameter (DC) | 5/8″ | Corner Radius (RE) | 0.313″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Number of Teeth | 5 |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Grade | H5003 Vulcan |
| Overall Length (OAL) | 5″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | VARIANTIC | Shank Standard | h6 |
| Flute Count (NOF) | 5 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.625″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2-1/2″ | Series/List # | 577 |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Unit | I |
| Application | | Finish | HEM | Profiling | Semi Finish | |
Product Features
| Family Description | 5 Flute Ballnose for Finishing, variable Pitch, Center cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | FamilyName | 577 - Ballnose End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
