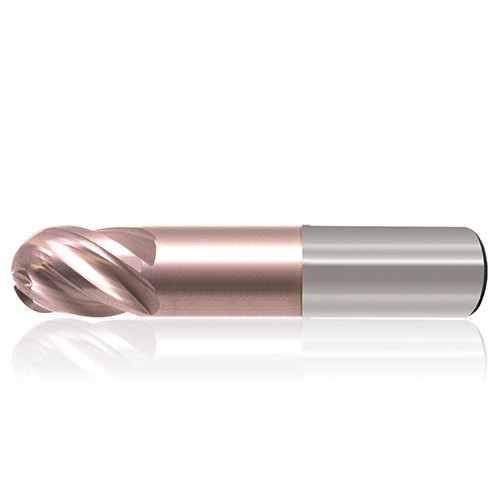

5 Flute Ballnose for Finishing, variable Pitch,reduced neck Center cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs.

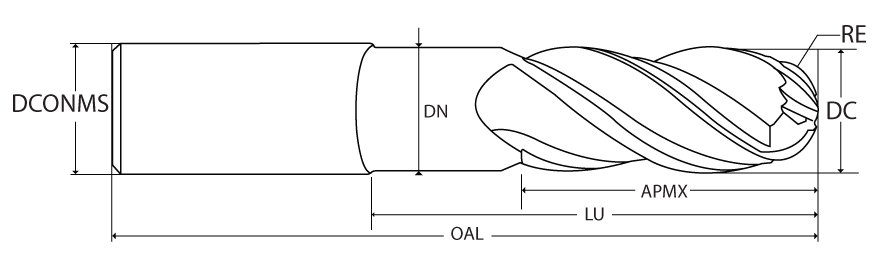

| Cutting Diameter (DC) | 1″ | Corner Radius (RE) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Neck Diameter (DN) | 0.97″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Number of Teeth | 5 |
| Overall Length (OAL) | 6″ | Grade | H5003 Vulcan |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | VARIANTIC | End Shape | Ballnose |
| Flute Count (NOF) | 5 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 1″ |
| Usable Length (LU) | 4″ | Measurement Type | Inch |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Series/List # | 577 |
| Application | | Finish | HEM | Profiling | Semi Finish | | Unit | I |
Product Features
| Family Description | 5 Flute Ballnose for Finishing, variable Pitch,reduced neck Center cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | FamilyName | 577 - Reduced Neck Ballnose End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
577 - Reduced Neck Ballnose End Mills
BrandName
Precision Cutting Tools
