DC 3.17 mm x DCONMS 6 mm x LCF 140 mm x OAL 190 mm

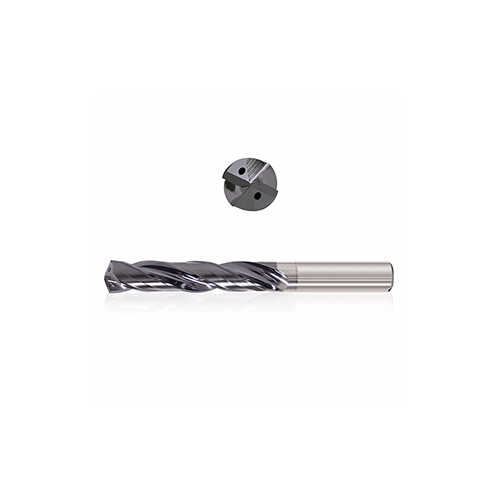

135° Point, Double Margin, High Performance, Coolant ThroughLong spiral-fluted, right-hand cut for Steels, Stainless, and Titanium
| Drill Bit Size / Cutting Diameter (DC) | 3.17 mm | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.17 mm | Cutting Edge Material | Carbide |
| Length Group | 40xD | Tool Type | Solid Carbide Drill |
| Coating | TiAICN | Grade | H5009 Varianta Supral |
| Applicable Material | | Stainless Steel | Steel | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Drilling | | Usable Length (LU) | 135.2 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 140 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 190 mm |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Feature | DOUBLE-MARGIN DRILL |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 50 mm | Body Material | Carbide |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | 135° Point, Double Margin, High Performance, Coolant ThroughLong spiral-fluted, right-hand cut for Steels, Stainless, and Titanium | ItemRemark | click here for cutting data |
| COO | Usa |
