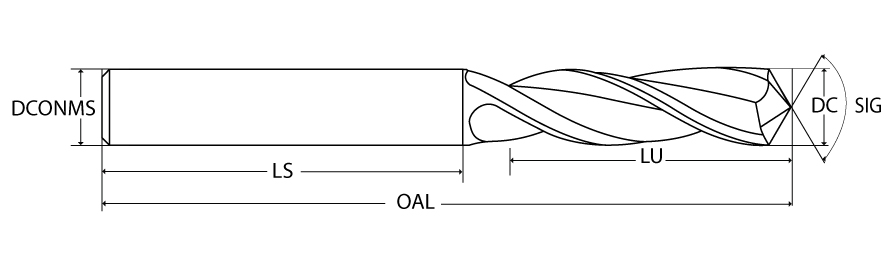

DC 0.2656′ x DCONMS 5/16′ x LCF 1.44′ x OAL 3′

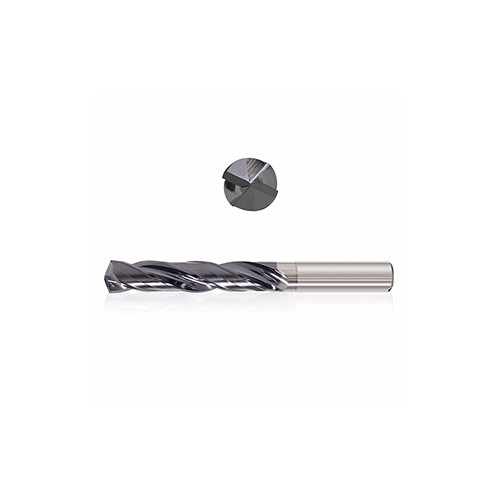

135° Point, Single Margin, Non Coolant Through Spiral-fluted, right-hand cut for General Purpose Drilling
| Drill Bit Size / Cutting Diameter (DC) | 0.2656″ | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2656″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2656″ | Tool Type | Solid Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.75 mm | Grade | A5009 Varianta Supral |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | TiAICN | Series/List # | SX |
| Applicable Material | | Stainless Steel | Steel | Super-Alloys / Titanium | | Usable Length (LU) | 1.0391″ |
| Application | | Drilling | | Length Chip Flute (LCF) | 1.44″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Overall Length (OAL) | 3″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees | Feature | SINGLE-MARGIN DRILL |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 1-9/16″ | Unit | I |
| Shank Type | Round |
Product Features
| Family Description | 135° Point, Single Margin, Non Coolant Through Spiral-fluted, right-hand cut for General Purpose Drilling | ItemRemark | click here for cutting data |
| COO | Usa |
