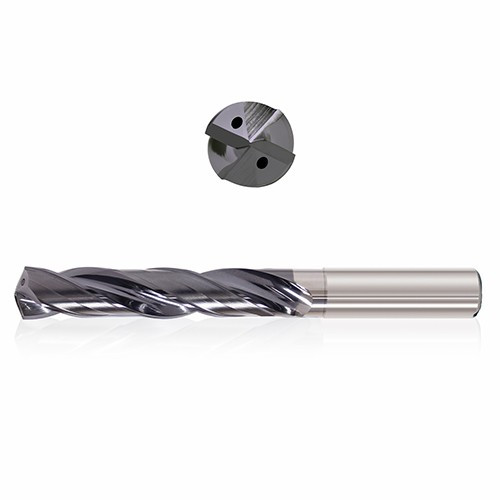

DC 13 mm x DCONMS 14 mm x LCF 77 mm x OAL 124 mm
150° Point, Single Margin, Pilot Drill, Coolant Through
| Drill Bit Size / Cutting Diameter (DC) | 13 mm | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Solid Carbide Pilot Drill |
| Coating | TiAICN | Grade | H5009 Varianta Supral |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Application | | Drilling | | Usable Length (LU) | 57.5 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Length Chip Flute (LCF) | 77 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 124 mm |
| Point Angle (SIG) | 150 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Feature | SINGLE-MARGIN DRILL |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 47 mm | Body Material | Carbide |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | 150° Point, Single Margin, Pilot Drill, Coolant Through | ItemRemark | click here for cutting data |
| COO | Usa |
