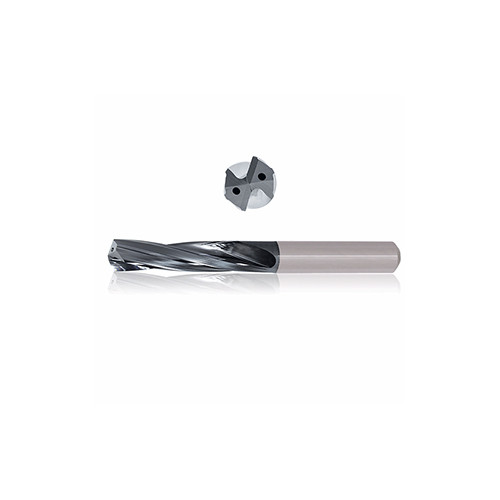

DC 3.17 mm x DCONMS 6 mm x LCF 20 mm x OAL 62 mm
135° Point, Triple Margin, High Performance, Coolant ThroughLong spiral fluted, 45° corner chamfer, right hand cut for Grey Cast Iron and Ductile Iron
| Drill Bit Size / Cutting Diameter (DC) | 3.17 mm | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.17 mm | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | Solid Carbide Drill |
| Coating | TiAICN | Grade | H5009 Varianta Supral |
| Applicable Material | | Cast Iron | | Measurement Type | Metric |
| Application | | Drilling | | Usable Length (LU) | 15.2 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 20 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 62 mm |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 15 Degrees | Feature | TRIPLE-MARGIN DRILL |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 42 mm | Body Material | Carbide |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | 135° Point, Triple Margin, High Performance, Coolant ThroughLong spiral fluted, 45° corner chamfer, right hand cut for Grey Cast Iron and Ductile Iron | ItemRemark | click here for cutting data |
| COO | Usa |
