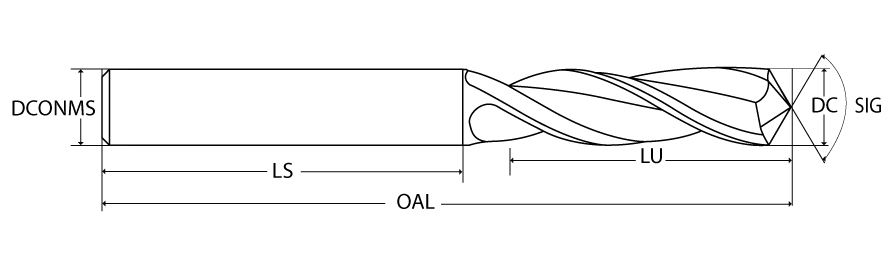

| Drill Bit Size / Cutting Diameter (DC) | 0.144″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.144″ | Shank Standard | h6 |
| Decimal Equivalent | 0.144″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.66 mm | Tool Type | Solid Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #27 | Grade | A5010 ZircoPlus |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | ZrCN | Series/List # | CX |
| Applicable Material | | Aluminum / Non-Ferrous Materials | Cast Iron | | Usable Length (LU) | 1.159″ |
| Application | | Drilling | | Length Chip Flute (LCF) | 1.38″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Overall Length (OAL) | 3″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 3 |
| Point Angle (SIG) | 130 Degrees | Feature | SINGLE-MARGIN DRILL |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 3 | Body Material | Carbide |
| Shank Length (LS) | 1-5/8″ | Unit | I |
Product Features
| Family Description | 130° Self Centering Point, Single Margin, Non Coolant Through High Performance, Aluminum and Non Ferrous Material | ItemRemark | click here for cutting data |
| COO | Usa |
Shipping Info
Weight per item
0.0000
