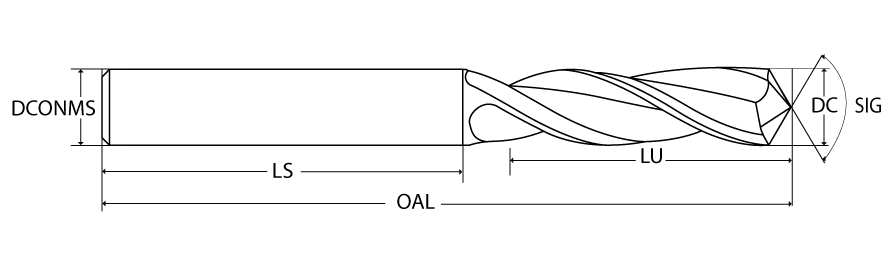

DC 0.1065′ x DCONMS 1/8′ x LCF 1-1/4′ x OAL 3′

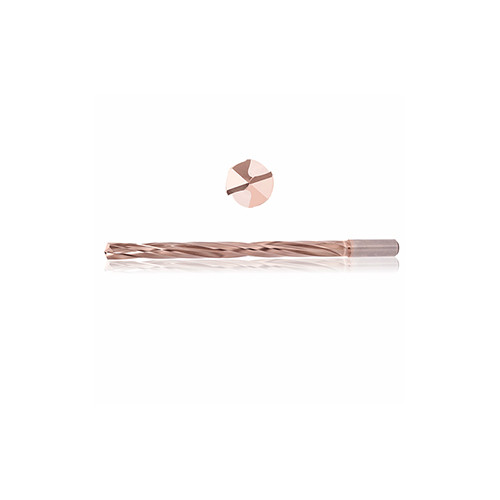

135° Point, Triple Margin, Zirco Plus Coating For Non Ferrous & Irons
| Drill Bit Size / Cutting Diameter (DC) | 0.1065″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1065″ | Shank Standard | h6 |
| Decimal Equivalent | 0.1065″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.71 mm | Tool Type | Solid Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #36 | Grade | A5010 ZircoPlus |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | ZrCN | Series/List # | AX |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 1.0903″ |
| Application | | Drilling | | Length Chip Flute (LCF) | 1-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Overall Length (OAL) | 3″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees | Feature | TRIPLE-MARGIN DRILL |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 1-3/4″ | Unit | I |
Product Features
| Family Description | 135° Point, Triple Margin, Zirco Plus Coating For Non Ferrous & Irons | ItemRemark | click here for cutting data |
| COO | Usa |
