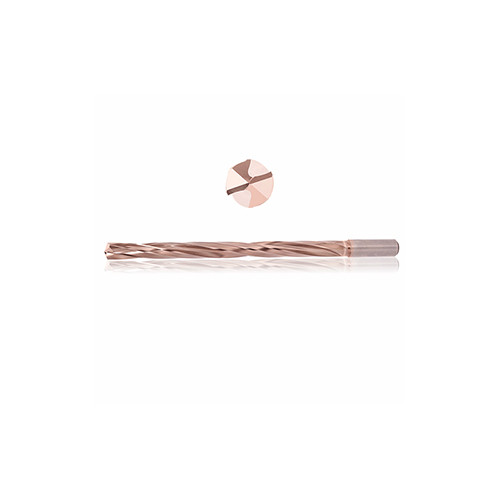

DC 0.3937′ x DCONMS 7/16′ x LCF 1.94′ x OAL 4′
135° Point, Triple Margin, Zirco Plus Coating For Non Ferrous & Irons
| Drill Bit Size / Cutting Diameter (DC) | 0.3937″ | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.3937″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3937″ | Tool Type | Solid Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10 mm | Grade | A5010 ZircoPlus |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | ZrCN | Series/List # | AX |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 1.347″ |
| Application | | Drilling | | Length Chip Flute (LCF) | 1.94″ |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Overall Length (OAL) | 4″ |
| Coolant Supply Property (CSP) | External | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees | Feature | TRIPLE-MARGIN DRILL |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 2-1/16″ | Unit | I |
| Shank Type | Round |
Product Features
| Family Description | 135° Point, Triple Margin, Zirco Plus Coating For Non Ferrous & Irons | ItemRemark | click here for cutting data |
| COO | Usa |
