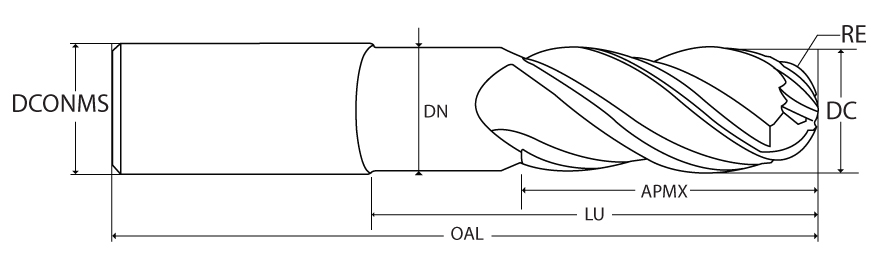

DC 3/4″ x DCONMS 3/4″ x APMX 1-1/4″ x OAL 6″
| Cutting Diameter (DC) | 3/4″ | Neck Diameter (DN) | 0.725″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Number of Teeth | 4 |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Grade | H5009 Varianta Supral |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | TiAICN | Shank Standard | h6 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.75″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 4″ | Series/List # | 453 |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | | Maximum Feed per Tooth (fz(max)) | 0.006 ″/tooth |
| Application | | HEM | Profiling | Roughing | Semi Finish | Slotting | | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Corner Radius (RE) | 3/8″ | Unit | I |
Product Features
| Family Description | 4 Flute Ballnose for Roughing. variable Pitch Chipbreaker Center cutting, 38° helix angle, Reduced Neck For Ferrous & Exotic Alloys | FamilyName | 453 - Reduced Neck Ballnose w/ Chipbreakers-PCT9585604 -I |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.000
Name
Ballnose End Mills
FamilyName
453 - Reduced Neck Ballnose w/ Chipbreakers-PCT9585604 -I
BrandName
Precision Cutting Tools
