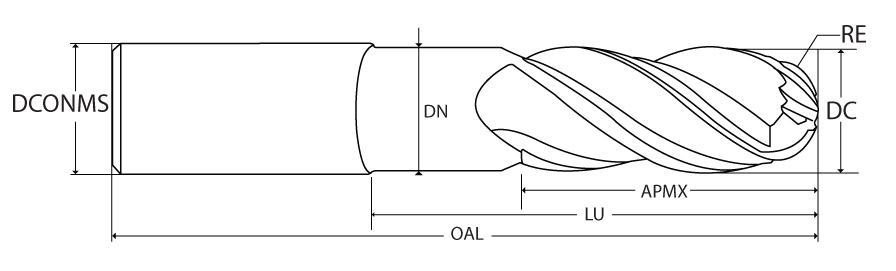

DC 1′ x DCONMS 1′ x APMX 1-1/2′ x OAL 6′
4 Flute Ballnose for Finishing. variable Pitch Center cutting, 38° helix angle, Reduced Neck. For Ferrous & Exotic Alloys
| Cutting Diameter (DC) | 1″ | Neck Diameter (DN) | 0.97″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Number of Teeth | 4 |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | H5009 Varianta Supral |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | TiAICN | Shank Standard | h6 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 1″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 4″ | Series/List # | 452 |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.008 ″/tooth |
| Application | | Finish | HEM | Profiling | Roughing | Semi Finish | Slotting | | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Corner Radius (RE) | 1/2″ | Unit | I |
Product Features
| Family Description | 4 Flute Ballnose for Finishing. variable Pitch Center cutting, 38° helix angle, Reduced Neck. For Ferrous & Exotic Alloys | FamilyName | 452 - Reduced Neck Ballnose Variable End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
452 - Reduced Neck Ballnose Variable End Mills
BrandName
Precision Cutting Tools
