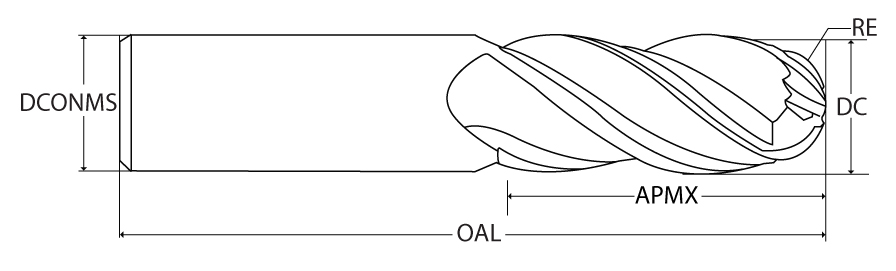

DC 7/16′ x DCONMS 7/16′ x APMX 5/8′ x OAL 2-3/4′
4 Flute Ballnose for Finishing. variable Pitch Center cutting, 38° helix angle For Ferrous & Exotic Alloys
| Cutting Diameter (DC) | 7/16″ | Number of Teeth | 4 |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Grade | H5009 Varianta Supral |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-3/4″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Shank Standard | h6 |
| Coating | TiAICN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.4375″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 452 |
| Usable Length (LU) | 5/8″ | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Minimum Feed per Tooth (fz(min)) | 0.0009 ″/tooth |
| Application | | Finish | HEM | Profiling | Roughing | Semi Finish | Slotting | | Unit | I |
| Corner Radius (RE) | 0.2188″ |
Product Features
| Family Description | 4 Flute Ballnose for Finishing. variable Pitch Center cutting, 38° helix angle For Ferrous & Exotic Alloys | FamilyName | 452 - Ballnose Variable Eccentric End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
452 - Ballnose Variable Eccentric End Mills
BrandName
Precision Cutting Tools
