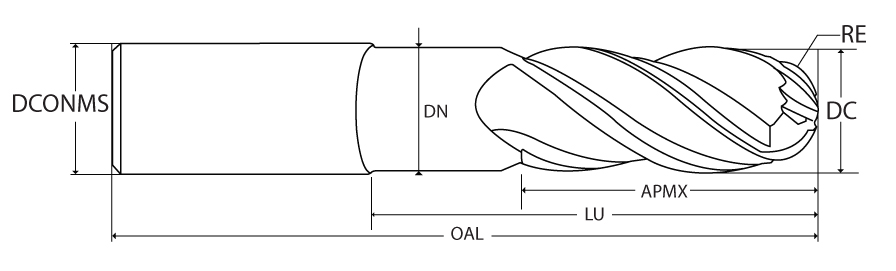

DC 1/2″ x DCONMS 1/2″ x APMX 7/8″ x OAL 6″
| Cutting Diameter (DC) | 1/2″ | Neck Diameter (DN) | 0.48″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Number of Teeth | 3 |
| Depth of Cut Maximum (APMX) | 7/8″ | Grade | A5005 Exxtral Carbon (DLC) |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | Ta-C | Shank Standard | h6 |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 4-1/8″ | Series/List # | 363 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Application | | HEM | Profiling | Roughing | Semi Finish | Slotting | | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Corner Radius (RE) | 1/4″ | Unit | I |
Product Features
| Family Description | 3 Flute Ballnose for Roughing, Variable Pitch Chipbreaker Center cutting, 45° helix angle, Reduced Neck For Aluminum and Non-Ferrous alloys | FamilyName | 363 - Reduced Neck Ballnose w/ Chipbreakers |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
363 - Reduced Neck Ballnose w/ Chipbreakers
BrandName
Precision Cutting Tools
