DC 3/4′ x DCONMS 3/4′ x APMX 1-1/4′ x OAL 4′
3 Flute Ballnose for Roughing, Coarse Pitch Rougher Center cutting, 37° helix angle, Reduced Neck For Aluminum and Non-Ferrous alloys

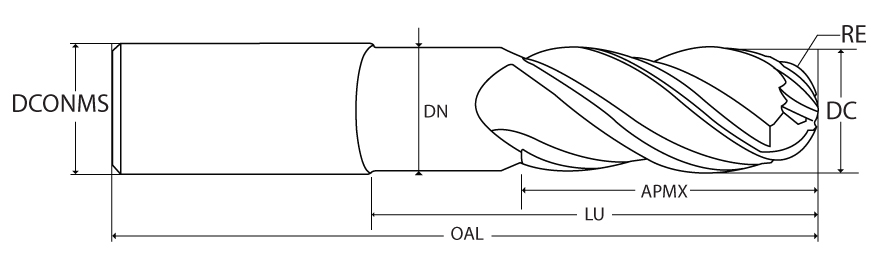

| Cutting Diameter (DC) | 3/4″ | Neck Diameter (DN) | 0.725″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Number of Teeth | 3 |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Grade | A5005 Exxtral Carbon (DLC) |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | Ta-C | Shank Standard | h6 |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 37 Degrees | Decimal Equivalent | 0.75″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2″ | Series/List # | 338 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.013 ″/tooth |
| Application | | HEM | Profiling | Roughing | Semi Finish | Slotting | | Minimum Feed per Tooth (fz(min)) | 0.004 ″/tooth |
| Corner Radius (RE) | 3/8″ | Unit | I |
Product Features
| Family Description | 3 Flute Ballnose for Roughing, Coarse Pitch Rougher Center cutting, 37° helix angle, Reduced Neck For Aluminum and Non-Ferrous alloys | FamilyName | 338 - Reduced Neck Roughing Ballnose |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
338 - Reduced Neck Roughing Ballnose
BrandName
Precision Cutting Tools
