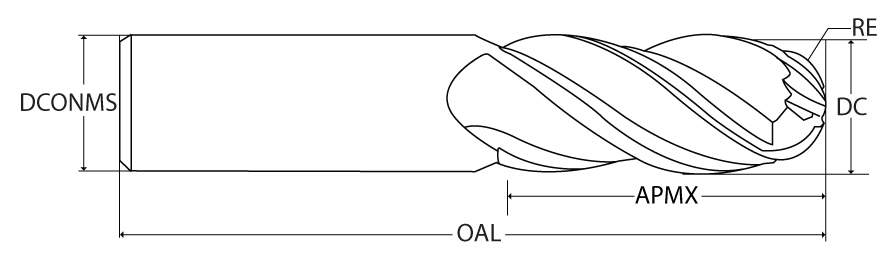

DC 3/4′ x DCONMS 3/4′ x APMX 1-5/8′ x OAL 4′

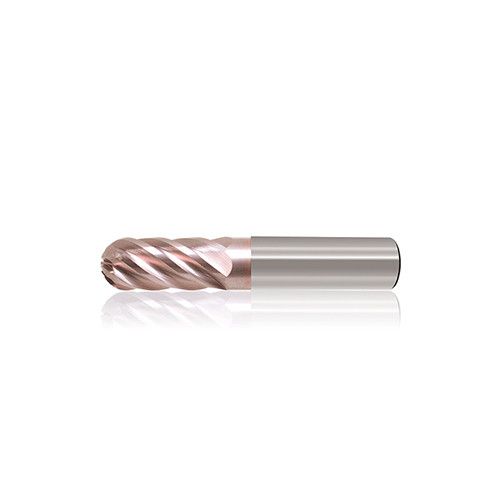

6 Flute Ballnose for Finishing, variable Pitch, Center cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs.
| Cutting Diameter (DC) | 3/4″ | Number of Teeth | 6 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Grade | H5003 Vulcan |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Shank Standard | h6 |
| Coating | VARIANTIC | Body Material | Carbide |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 677 |
| Usable Length (LU) | 1-5/8″ | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Minimum Feed per Tooth (fz(min)) | 0.0018 ″/tooth |
| Application | | Finish | HEM | Profiling | Semi Finish | | Unit | I |
| Corner Radius (RE) | 3/8″ |
Product Features
| Family Description | 6 Flute Ballnose for Finishing, variable Pitch, Center cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | FamilyName | 677 - Ballnose End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
