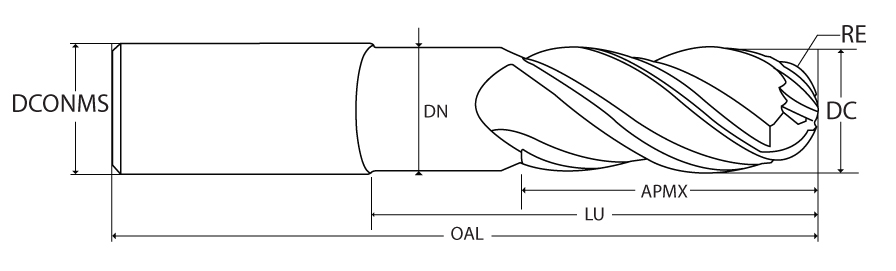

DC 1′ x DCONMS 1′ x APMX 1-1/2′ x OAL 6′
6 Flute Ballnose for Finishing, variable Pitch, Reduced NeckCenter cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs.
| Cutting Diameter (DC) | 1″ | Neck Diameter (DN) | 0.97″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Number of Teeth | 6 |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | H5003 Vulcan |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | VARIANTIC | Shank Standard | h6 |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 1″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 4″ | Series/List # | 677 |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0065 ″/tooth |
| Application | | Finish | HEM | Profiling | Semi Finish | | Minimum Feed per Tooth (fz(min)) | 0.0025 ″/tooth |
| Corner Radius (RE) | 1/2″ | Unit | I |
Product Features
| Family Description | 6 Flute Ballnose for Finishing, variable Pitch, Reduced NeckCenter cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | FamilyName | 677 - Reduced Neck Ballnose End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
677 - Reduced Neck Ballnose End Mills
BrandName
Precision Cutting Tools
