DC 5/8′ x DCONMS 5/8′ x APMX 3/4′ x OAL 3′

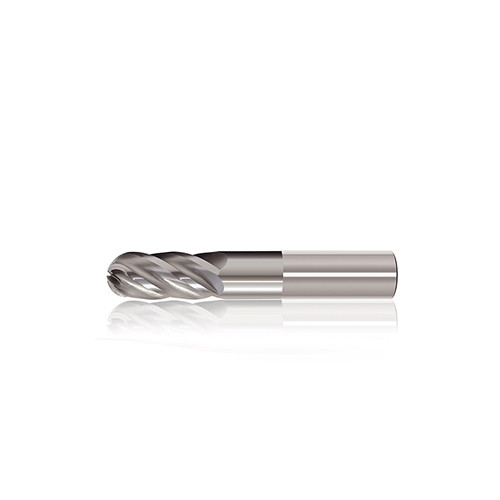

5 Flute Ballnose for Finishing. variable Pitch Center cutting, 35° helix angle, Traditional Milling For Ferrous & Exotic Alloys

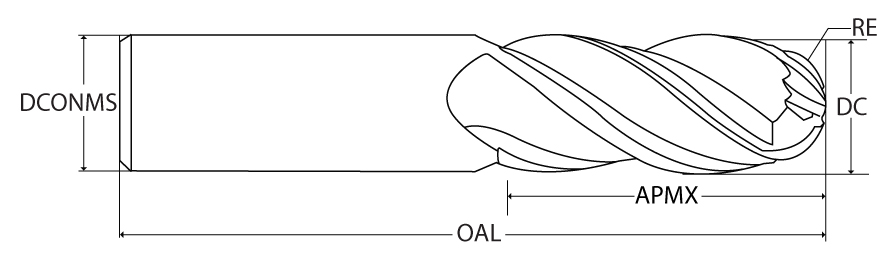

| Cutting Diameter (DC) | 5/8″ | Number of Teeth | 5 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Grade | H5008 Exxtral Silver |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Shank Standard | h6 |
| Coating | AITiCrN | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.625″ |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 558 |
| Usable Length (LU) | 3/4″ | Maximum Feed per Tooth (fz(max)) | 0.009 ″/tooth |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Application | | Finish | HEM | Profiling | Semi Finish | | Unit | I |
| Corner Radius (RE) | 5/16″ |
Product Features
| Family Description | 5 Flute Ballnose for Finishing. variable Pitch Center cutting, 35° helix angle, Traditional Milling For Ferrous & Exotic Alloys | FamilyName | 558 - Ballnose End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
558 - Ballnose End Mills
BrandName
Precision Cutting Tools
