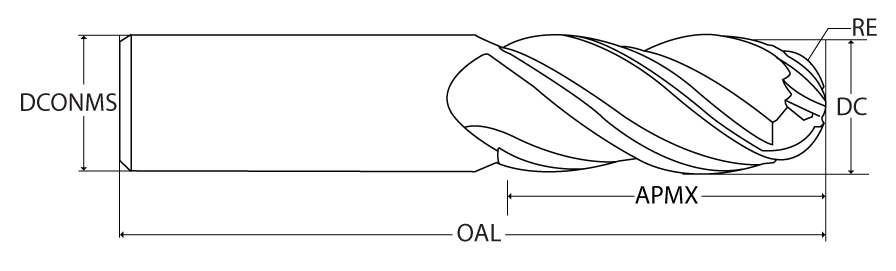

DC 1/4′ x DCONMS 1/4′ x APMX 3/4′ x OAL 2-1/2′
4 Flute Ballnose for Roughing. variable Pitch Chipbreaker Center cutting, 38° helix angle For Ferrous & Exotic Alloys
| Cutting Diameter (DC) | 1/4″ | Number of Teeth | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Grade | H5009 Varianta Supral |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/2″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Shank Standard | h6 |
| Coating | TiAICN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 453 |
| Usable Length (LU) | 3/4″ | Maximum Feed per Tooth (fz(max)) | 0.002 ″/tooth |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | | Minimum Feed per Tooth (fz(min)) | 0.0006 ″/tooth |
| Application | | HEM | Profiling | Roughing | Semi Finish | Slotting | | Unit | I |
| Corner Radius (RE) | 1/8″ |
Product Features
| Family Description | 4 Flute Ballnose for Roughing. variable Pitch Chipbreaker Center cutting, 38° helix angle For Ferrous & Exotic Alloys | FamilyName | 453 - Ballnose End Mills w/ Chipbreakers |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
453 - Ballnose End Mills w/ Chipbreakers
BrandName
Precision Cutting Tools
