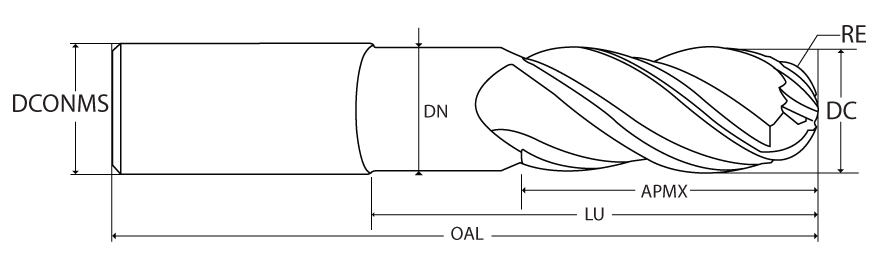

DC 3/8″ x DCONMS 3/8″ x APMX 3/4″ x OAL 4″
| Cutting Diameter (DC) | 3/8″ | Number of Teeth | 3 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Grade | H5005 Exxtral Carbon (DLC) |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4″ | End Shape | Ballnose |
| Flute Count (NOF) | 3 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.375″ |
| Usable Length (LU) | 2-1/8″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | 360 |
| Application | | Finish | HEM | Profiling | Roughing | Semi Finish | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Corner Radius (RE) | 3/16″ | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Neck Diameter (DN) | 0.36″ | Unit | I |
Product Features

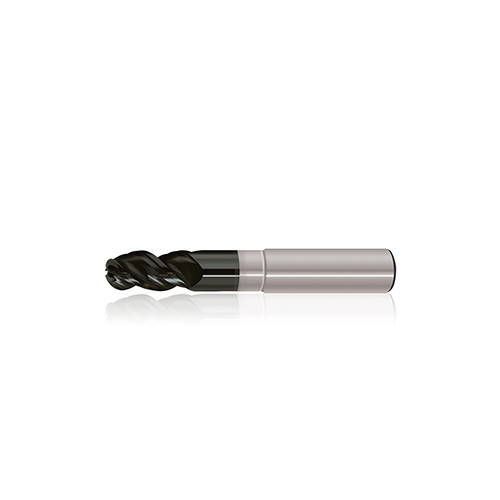

| Family Description | 3 Flute Ballnose for Finishing, Variable Pitch, Center cutting, 45° helix angle, Reduced Neck. For Aluminum and Non-Ferrous alloys | FamilyName | 360 - Reduced Neck Ballnose Variable End Mills-PCT9525215 -I |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.000
Name
Ballnose End Mills
FamilyName
360 - Reduced Neck Ballnose Variable End Mills-PCT9525215 -I
BrandName
Precision Cutting Tools
