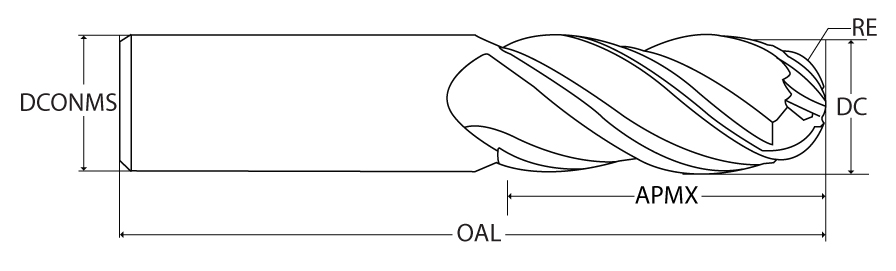

DC 3/8′ x DCONMS 3/8′ x APMX 1′ x OAL 2-1/2′
3 Flute Ballnose for Finishing, High Performance, Center cutting, 45° helix angle For Aluminum and Non-Ferrous alloys
| Cutting Diameter (DC) | 3/8″ | Grade | H5005 Exxtral Carbon (DLC) |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 1″ | End Shape | Ballnose |
| Overall Length (OAL) | 2-1/2″ | Shank Standard | h6 |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Decimal Equivalent | 0.375″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 1″ | Series/List # | 345 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Application | | Finish | HEM | Profiling | Semi Finish | | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Corner Radius (RE) | 3/16″ | Unit | I |
| Number of Teeth | 3 |
Product Features
| Family Description | 3 Flute Ballnose for Finishing, High Performance, Center cutting, 45° helix angle For Aluminum and Non-Ferrous alloys | FamilyName | 345 - Ballnose End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
345 - Ballnose End Mills
BrandName
Precision Cutting Tools
