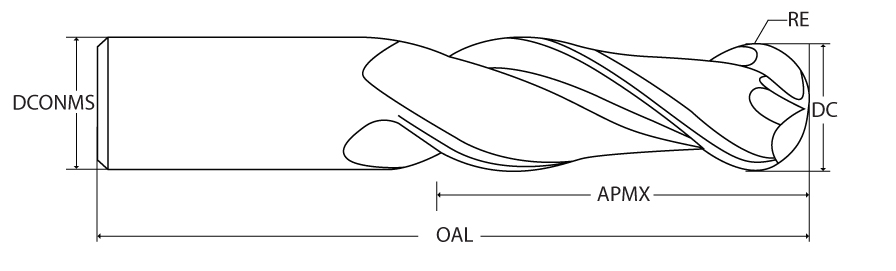

DC 7/16′ x DCONMS 7/16′ x APMX 9/16′ x OAL 2-3/4′

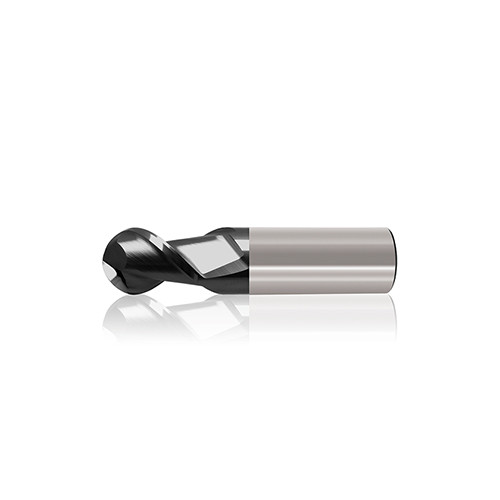

2 Flute Ballnose for Finishing, High Performance, Center cutting, 45° helix angle. For Aluminum and Non-Ferrous alloys
| Cutting Diameter (DC) | 7/16″ | Number of Teeth | 2 |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Grade | A5005 Exxtral Carbon (DLC) |
| Depth of Cut Maximum (APMX) | 9/16″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-3/4″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Shank Standard | h6 |
| Coating | Ta-C | Body Material | Carbide |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.4375″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 224 |
| Usable Length (LU) | 9/16″ | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Application | | Finish | HEM | Profiling | Semi Finish | | Unit | I |
| Corner Radius (RE) | 0.2188″ |
Product Features
| Family Description | 2 Flute Ballnose for Finishing, High Performance, Center cutting, 45° helix angle. For Aluminum and Non-Ferrous alloys | FamilyName | 224 - Ballnose End Mill |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
224 - Ballnose End Mill
BrandName
Precision Cutting Tools
