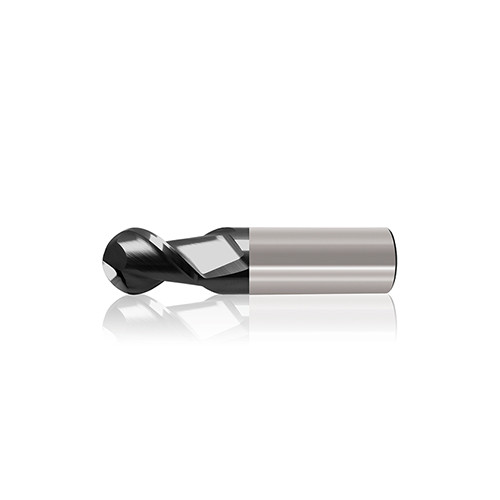

DC 1/4′ x DCONMS 1/4′ x APMX 1/2′ x OAL 4′
2 Flute Ballnose for Finishing, High Performance, Center cutting, 45° helix angle, Reduced Neck. For Aluminum and Non-Ferrous alloys

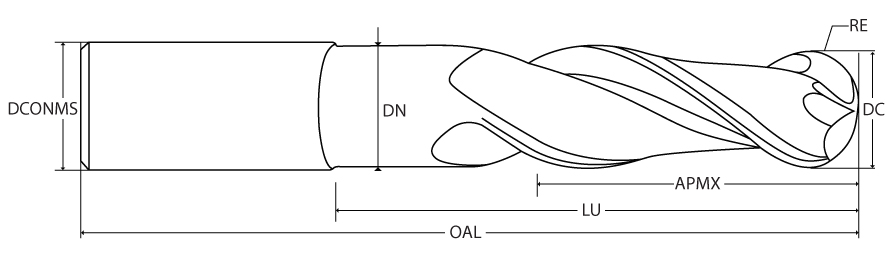

| Cutting Diameter (DC) | 1/4″ | Neck Diameter (DN) | 0.235″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Number of Teeth | 2 |
| Depth of Cut Maximum (APMX) | 1/2″ | Grade | A5005 Exxtral Carbon (DLC) |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | Ta-C | Shank Standard | h6 |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Decimal Equivalent | 0.25″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2-1/8″ | Series/List # | 224 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Application | | Finish | HEM | Profiling | Semi Finish | | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Corner Radius (RE) | 1/8″ | Unit | I |
Product Features
| Family Description | 2 Flute Ballnose for Finishing, High Performance, Center cutting, 45° helix angle, Reduced Neck. For Aluminum and Non-Ferrous alloys | FamilyName | 224 - Reduced Neck Ballnose End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
224 - Reduced Neck Ballnose End Mills
BrandName
Precision Cutting Tools
