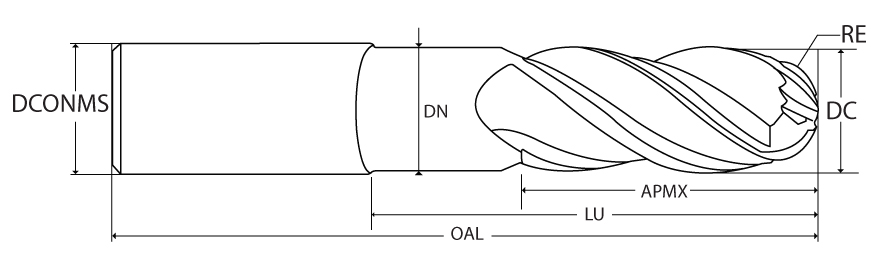

DC 1/2′ x DCONMS 1/2′ x APMX 7/8′ x OAL 6′
4 Flute Ballnose for Finishing. variable Pitch (Center cutting, 38° helix angle, Reduced Neck For Ferrous & Exotic Alloys
| Cutting Diameter (DC) | 1/2″ | Neck Diameter (DN) | 0.48″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Number of Teeth | 4 |
| Depth of Cut Maximum (APMX) | 7/8″ | Grade | H5003 Varianta Supral |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | VARIANTIC | Shank Standard | h6 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 4-1/8″ | Series/List # | 451 |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Application | | Finish | HEM | Profiling | Roughing | Semi Finish | Slotting | | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Corner Radius (RE) | 1/4″ | Unit | I |
Product Features
| Family Description | 4 Flute Ballnose for Finishing. variable Pitch (Center cutting, 38° helix angle, Reduced Neck For Ferrous & Exotic Alloys | FamilyName | 451 - Reduced Neck Variable Ballnose End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Ballnose End Mills
FamilyName
451 - Reduced Neck Variable Ballnose End Mills
BrandName
Precision Cutting Tools
