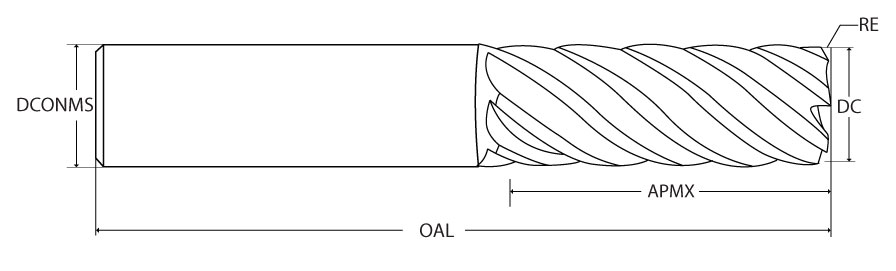

DC 3/8′ x DCONMS 3/8′ x APMX 1′ x OAL 3′

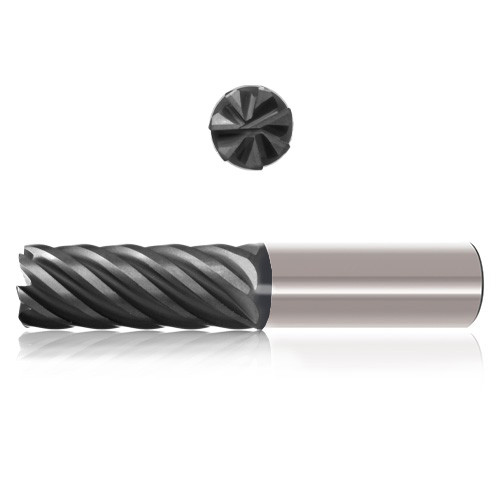

7 Flute Endmill for Finishing, Variable Pitch, Center Cutting, 40° Helix Angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs.
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Overall Length (OAL) | 3″ | Grade | X6004 Cut-Tron Coated |
| Cutting Edge Material | Carbide | Shank Standard | h6 |
| Flute Count (NOF) | 7 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | Ti7 |
| End Shape | Square | Unit | I |
| Usable Length (LU) | 1″ |
Product Features
| Family Description | 7 Flute Endmill for Finishing, Variable Pitch, Center Cutting, 40° Helix Angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | FamilyName | TI7 - Square & Radius End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
TI7 - Square & Radius End Mills
BrandName
Precision Cutting Tools
