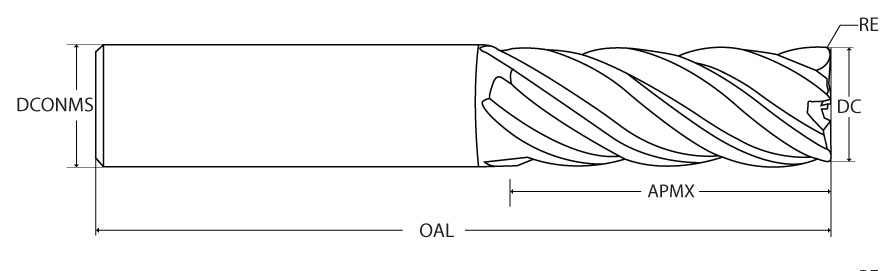

DC 1/2′ x DCONMS 1/2′ x APMX 1-1/4′ x OAL 3′

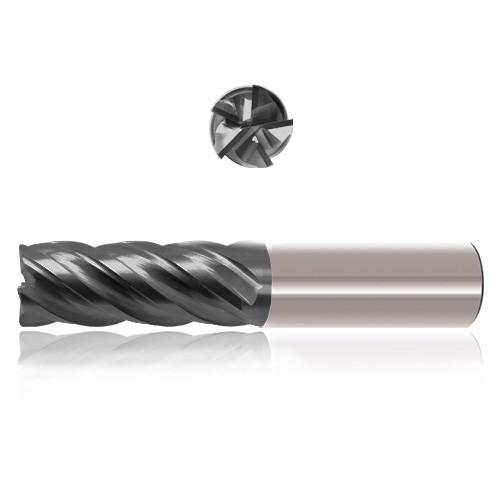

5 Flute Endmill for Finishing, variable Pitch, Center cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. For longer tool life.
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Grade | X6004 Cut-Tron Coating |
| Overall Length (OAL) | 3″ | Shank Standard | h6 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | Ti5 |
| End Shape | Square | Unit | I |
| Usable Length (LU) | 1-1/4″ |
Product Features
| Family Description | 5 Flute Endmill for Finishing, variable Pitch, Center cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. For longer tool life. | FamilyName | TI5 - Square & Radius End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
TI5 - Square & Radius End Mills
BrandName
Precision Cutting Tools
