DC 1′ x DCONMS 1′ x APMX 1-1/2′ x OAL 7′
7 Flute Endmill for Finishing, Variable Pitch, Reduced Neck,Center Cutting, 40° Helix, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs.

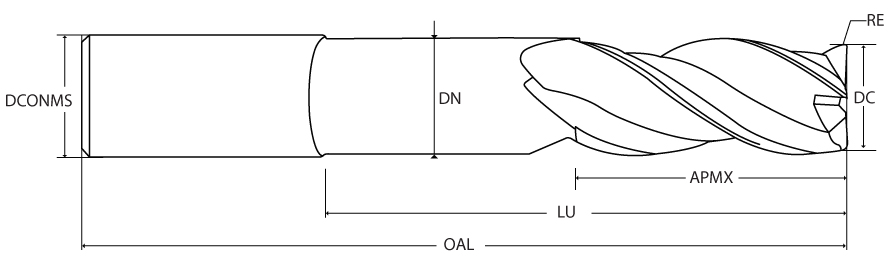

| Cutting Diameter (DC) | 1″ | Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | H5003 Vulcan |
| Overall Length (OAL) | 7″ | Neck Diameter (DN) | 0.97″ |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | VARIANTIC | Shank Standard | h6 |
| Flute Count (NOF) | 7 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 40 Degrees | Decimal Equivalent | 1″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Square | Series/List # | 777 |
| Usable Length (LU) | 5″ | Unit | I |
Product Features
| Family Description | 7 Flute Endmill for Finishing, Variable Pitch, Reduced Neck,Center Cutting, 40° Helix, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | FamilyName | 777 - Reduced Neck Square & Radius End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
777 - Reduced Neck Square & Radius End Mills
BrandName
Precision Cutting Tools
