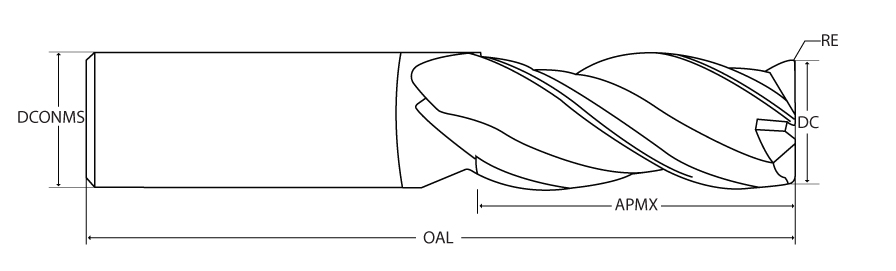

DC 1/2″ x DCONMS 1/2″ x APMX 7/8″ x OAL 5″
| Cutting Diameter (DC) | 1/2″ | Grade | H5003 Varianta Supral |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Neck Diameter (DN) | 0.48″ |
| Depth of Cut Maximum (APMX) | 7/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 5″ | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | VARIANTIC | Shank Standard | h6 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| End Shape | Square | Measurement Type | Inch |
| Usable Length (LU) | 3-1/8″ | Series/List # | 451 |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | | Unit | I |
| Application | | Finish | HEM | Roughing | Semi Finish | Shouldering | Slotting | |
Product Features
| Family Description | 4 Flute End Mill for Finishing, Variable Pitch Center Cutting, 38° Helix, Reduced Neck For Ferrous & Exotic Alloys | FamilyName | 451 - Reduced Neck Square & Radius Variable-PCT9586177 -I |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.000
Name
Square & Corner Radius End Mills
FamilyName
451 - Reduced Neck Square & Radius Variable-PCT9586177 -I
BrandName
Precision Cutting Tools
