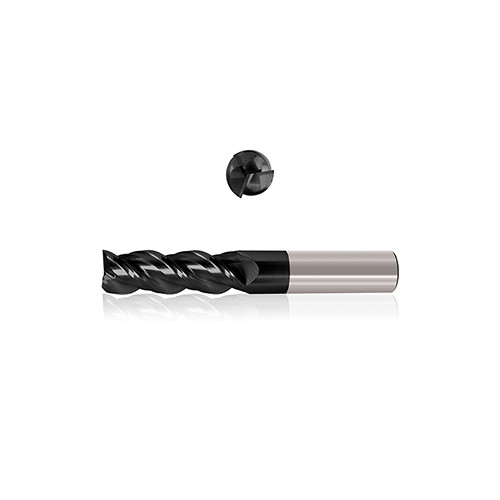

DC 1/2′ x DCONMS 1/2′ x APMX 7/8′ x OAL 5′
3 Flute End Mill for Finishing, High Performance, Center cutting, 45° helix angle, Reduced Neck. For Aluminum and Non-Ferrous alloys

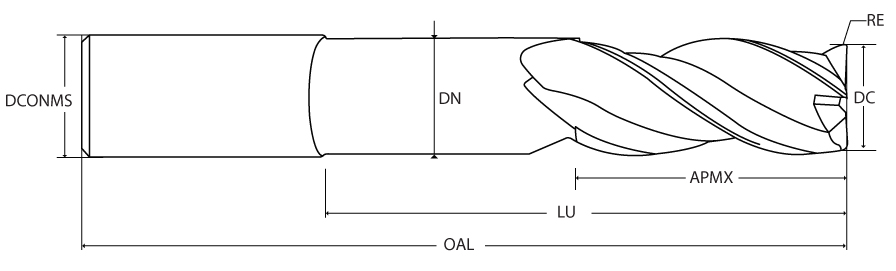

| Cutting Diameter (DC) | 1/2″ | Grade | H5005 Exxtral Carbon (DLC) |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Neck Diameter (DN) | 0.48″ |
| Depth of Cut Maximum (APMX) | 7/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 5″ | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Shank Standard | h6 |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 3-1/8″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | 345 |
| Application | | Finish | HEM | Semi Finish | Shouldering | | Unit | I |
| Corner Radius (RE) | 1/8″ |
Product Features
| Family Description | 3 Flute End Mill for Finishing, High Performance, Center cutting, 45° helix angle, Reduced Neck. For Aluminum and Non-Ferrous alloys | FamilyName | 345 - Reduced Neck Square & Radius End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
345 - Reduced Neck Square & Radius End Mills
BrandName
Precision Cutting Tools
