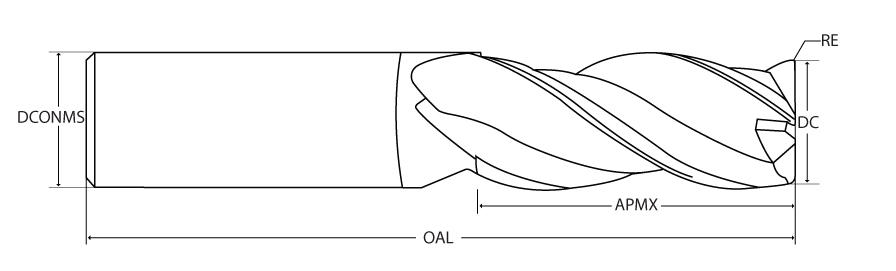

DC 1/4″ x DCONMS 1/4″ x APMX 1/2″ x OAL 4″
| Cutting Diameter (DC) | 1/4″ | Corner Radius (RE) | 0.015″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Grade | H5009 Varianta Supral |
| Depth of Cut Maximum (APMX) | 1/2″ | Neck Diameter (DN) | 0.235″ |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.002 ″/tooth |
| Coating | TiAICN | Minimum Feed per Tooth (fz(min)) | 0.0006 ″/tooth |
| Flute Count (NOF) | 4 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.25″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 2-1/8″ | Series/List # | 453 |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | | Unit | I |
| Application | | HEM | Roughing | Semi Finish | Shouldering | Slotting | |
Product Features

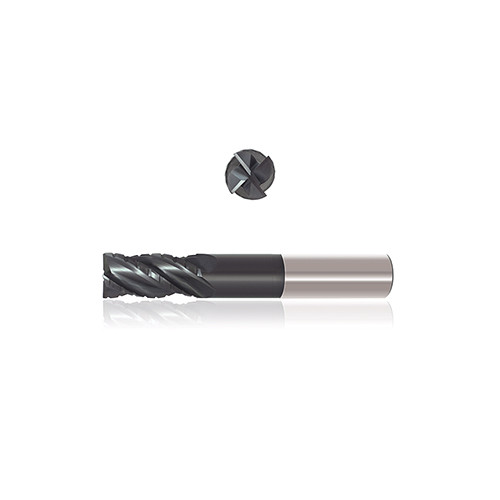

| Family Description | 4 Flute End Mill for Roughing, Variable Pitch w ChipbreakersCenter Cutting, 38° Helix, Reduced Neck For Ferrous & Exotic Alloys | FamilyName | 453 - Reduced Neck Square & Radius w/ Chipbreakers-PCT9581550 -I |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.000
Name
Square & Corner Radius End Mills
FamilyName
453 - Reduced Neck Square & Radius w/ Chipbreakers-PCT9581550 -I
BrandName
Precision Cutting Tools
