DC 1′ x DCONMS 1′ x APMX 1-1/2′ x OAL 6′
3 Flute End Mill for Roughing, Coarse Pitch Rougher Center Cutting, 37° Helix, Reduced Neck For Aluminum and Non-Ferrous alloys

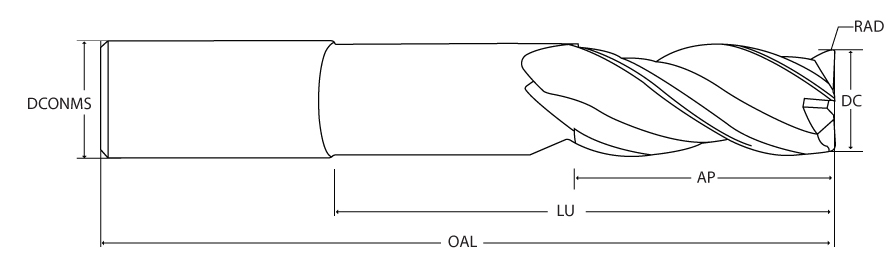

| Cutting Diameter (DC) | 1″ | Corner Radius (RE) | 1/8″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Grade | A5005 Exxtral Carbon (DLC) |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Neck Diameter (DN) | 0.97″ |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.015 ″/tooth |
| Coating | Ta-C | Minimum Feed per Tooth (fz(min)) | 0.005 ″/tooth |
| Flute Count (NOF) | 3 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 37 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 1″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 4″ | Series/List # | 338 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Unit | I |
| Application | | HEM | Roughing | Semi Finish | Shouldering | Slotting | |
Product Features
| Family Description | 3 Flute End Mill for Roughing, Coarse Pitch Rougher Center Cutting, 37° Helix, Reduced Neck For Aluminum and Non-Ferrous alloys | FamilyName | 338 - Reduced Neck Radius Roughing End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
338 - Reduced Neck Radius Roughing End Mills
BrandName
Precision Cutting Tools
