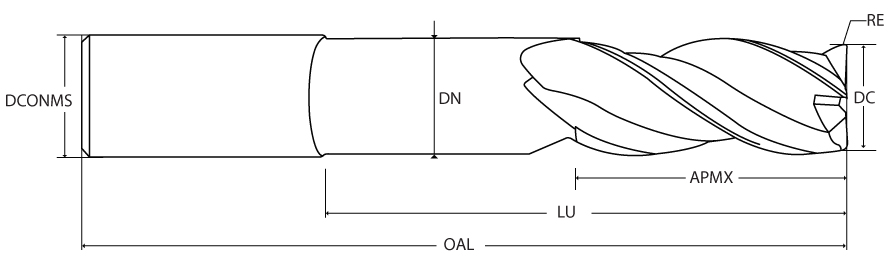

DC 5/8′ x DCONMS 5/8′ x APMX 3′ x OAL 6′
3 Flute End Mill for Finishing, High Performance, Center Cutting, 45° Helix For Aluminum and Non-Ferrous Alloys
| Cutting Diameter (DC) | 5/8″ | Grade | H5005 Exxtral Carbon (DLC) |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 3″ | Maximum Feed per Tooth (fz(max)) | 0.006 ″/tooth |
| Overall Length (OAL) | 6″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 3 | Shank Standard | h6 |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.625″ |
| Usable Length (LU) | 3″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | 345 |
| Application | | Finish | HEM | Semi Finish | Shouldering | | Unit | I |
| Corner Radius (RE) | 0.015″ |
Product Features
| Family Description | 3 Flute End Mill for Finishing, High Performance, Center Cutting, 45° Helix For Aluminum and Non-Ferrous Alloys | FamilyName | 345 - Square & Radius End Mills |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
345 - Square & Radius End Mills
BrandName
Precision Cutting Tools
