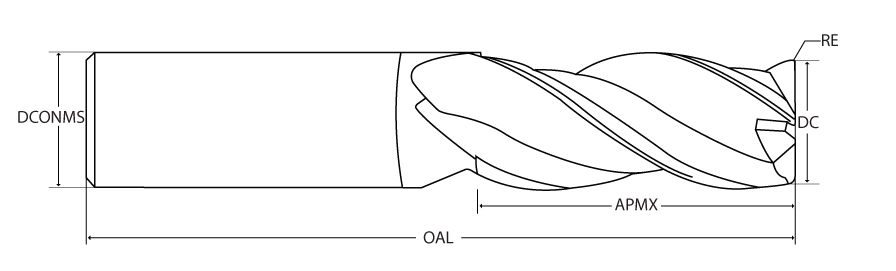

DC 7/16′ x DCONMS 7/16′ x APMX 5/8′ x OAL 2-3/4′

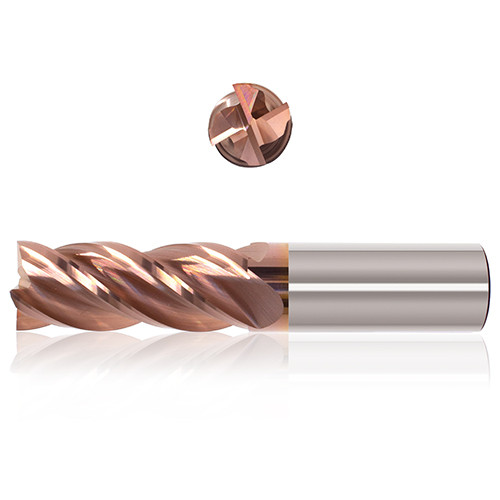

4 Flute End Mill for Finishing, Variable Pitch Center cutting, 38° Helix For Ferrous & Exotic Alloys
| Cutting Diameter (DC) | 7/16″ | Application | | Finish | HEM | Roughing | Semi Finish | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Grade | H5003 Varianta Supral |
| Overall Length (OAL) | 2-3/4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Coating | VARIANTIC | Minimum Feed per Tooth (fz(min)) | 0.0009 ″/tooth |
| Flute Count (NOF) | 4 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.4375″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 5/8″ | Series/List # | 451 |
| Applicable Material | | Cast Iron | Stainless Steel | Steel | | Unit | I |
Product Features
| Family Description | 4 Flute End Mill for Finishing, Variable Pitch Center cutting, 38° Helix For Ferrous & Exotic Alloys | FamilyName | 451 - Square & Radius Variable |
| COO | Usa | BrandName | Precision Cutting Tools |
| ItemRemark | click here for cutting data |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
451 - Square & Radius Variable
BrandName
Precision Cutting Tools
